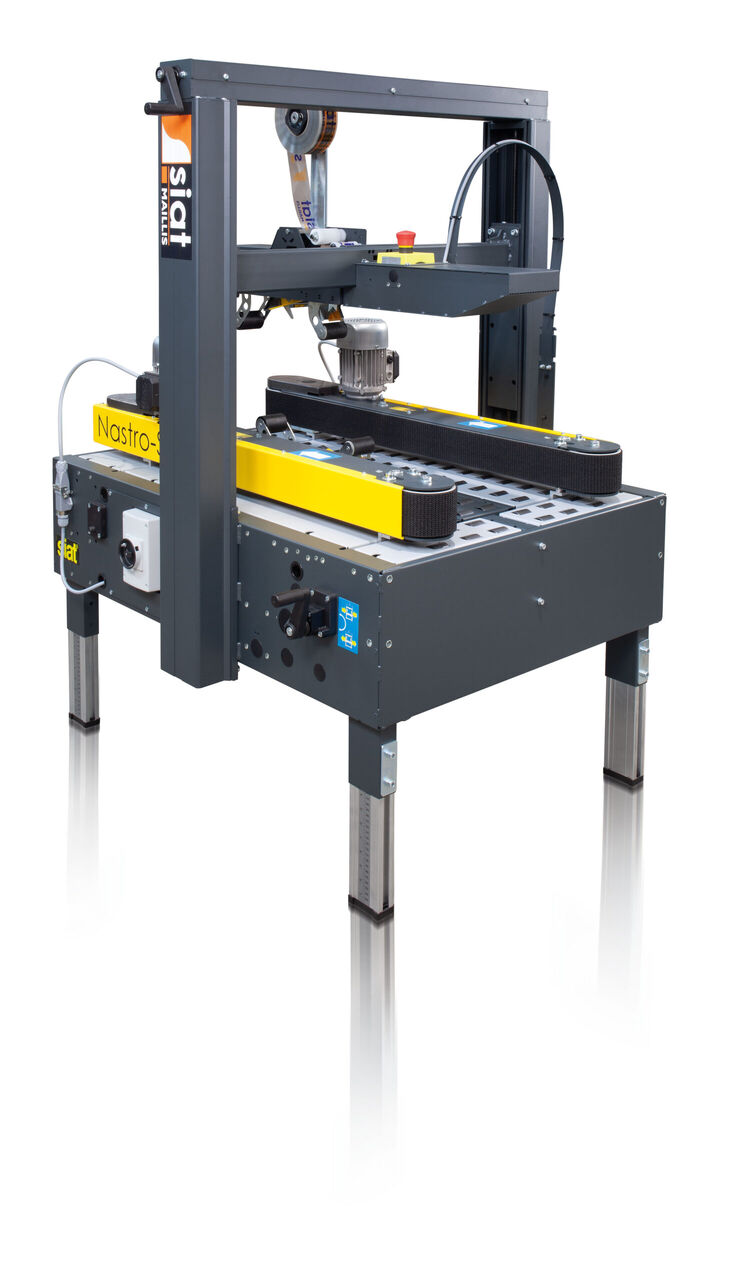

Semiautomatic carton sealerEB SB M5 - M6 - M8

M5, M6, M8 is a range of heavy duty semi-automatic case sealing machines designed and engineered  specifically for small – medium, large and king fixed boxes.
M5, M6, M8 is the ideal case sealing machine for a variety of industries like food&beverage, chemical, clothes and wine.





min. 150x150x120, max. 800x∞x800w x h x d 800width (mm) Top and bottomdruh lepení

Technical information

Semi-automatic carton gluer with mechanical regulation of the size of the glued carton. In this machine, the drive belts are located on the sides of the glued cardboard with mechanical guidance of the upper part of the cardboard.

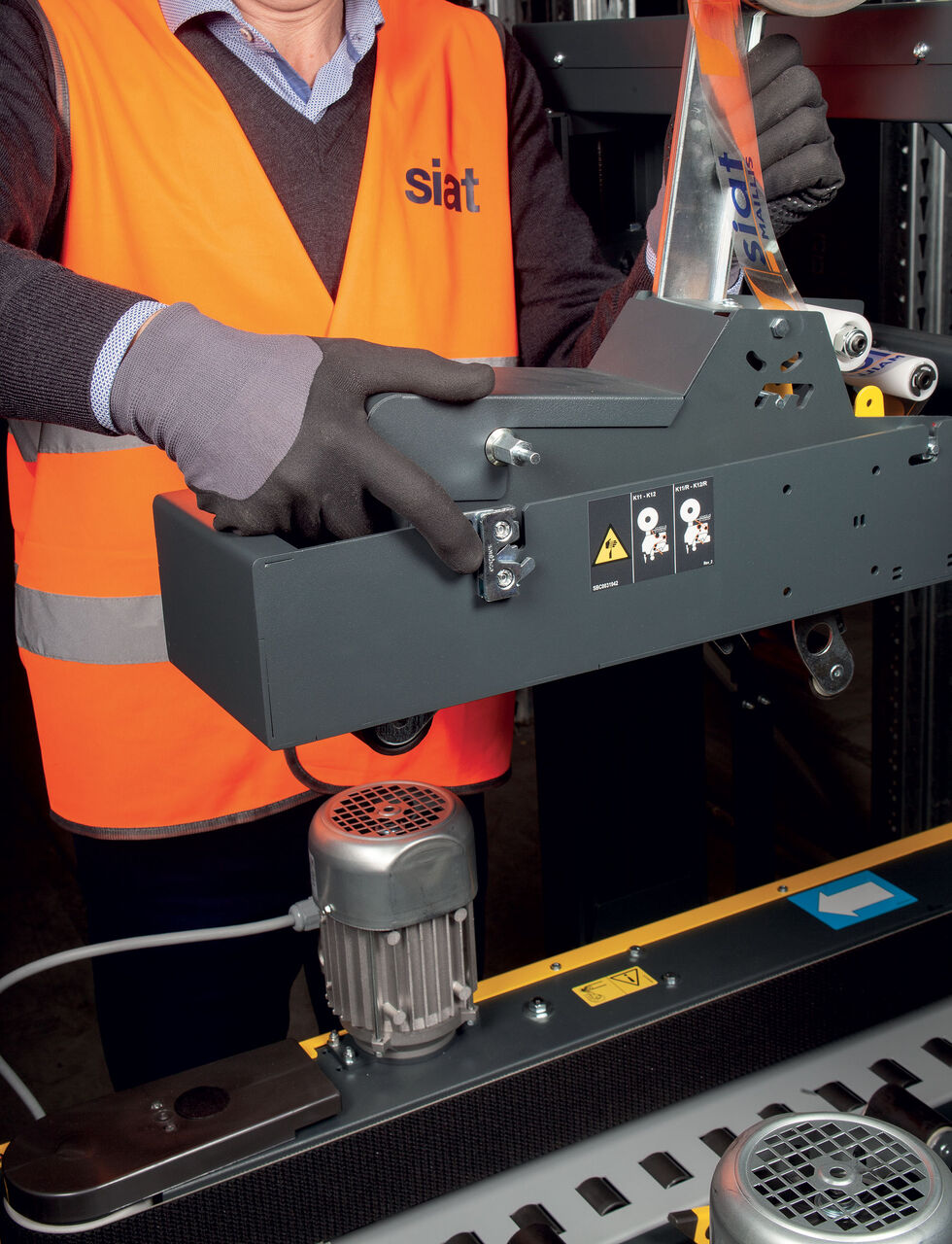

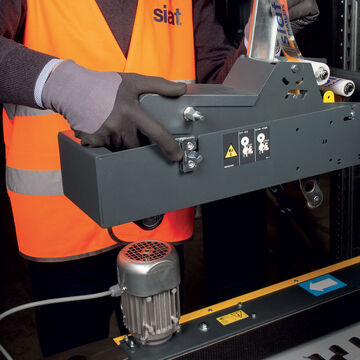

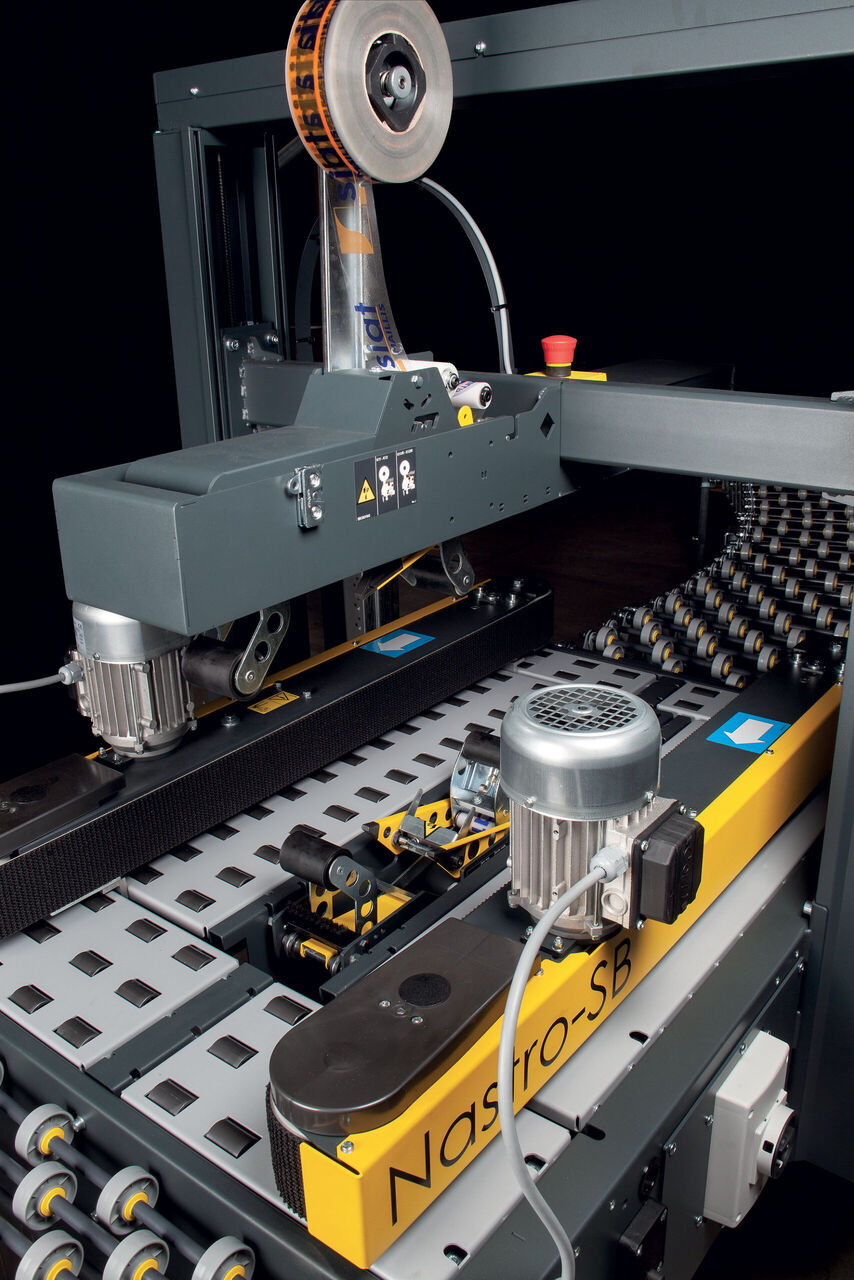

  • Top and bottom tapping head
  • Processable tapes 50/75mm
  • Side driven belt conveyor
  • Suitable for goods of the same size

USE

  • The machine is suitable for medium capacity glued boxes with the same or not very frequent height change. The top lid of the box must be closed manually before gluing.
  • Machine drive: electric
  • Carton size setting: manual
  • Closing the lid of cartons: manual
  • Size of packaged goods (mm): width 150 - 800
  • height 120 - 800
  • length 120 - unlimited
  • Used tape (mm): 50-75
  • Height of work table: 540 - 800mm
  • Driven goods conveyor: side
  • Power consumption: 0.26 kW
