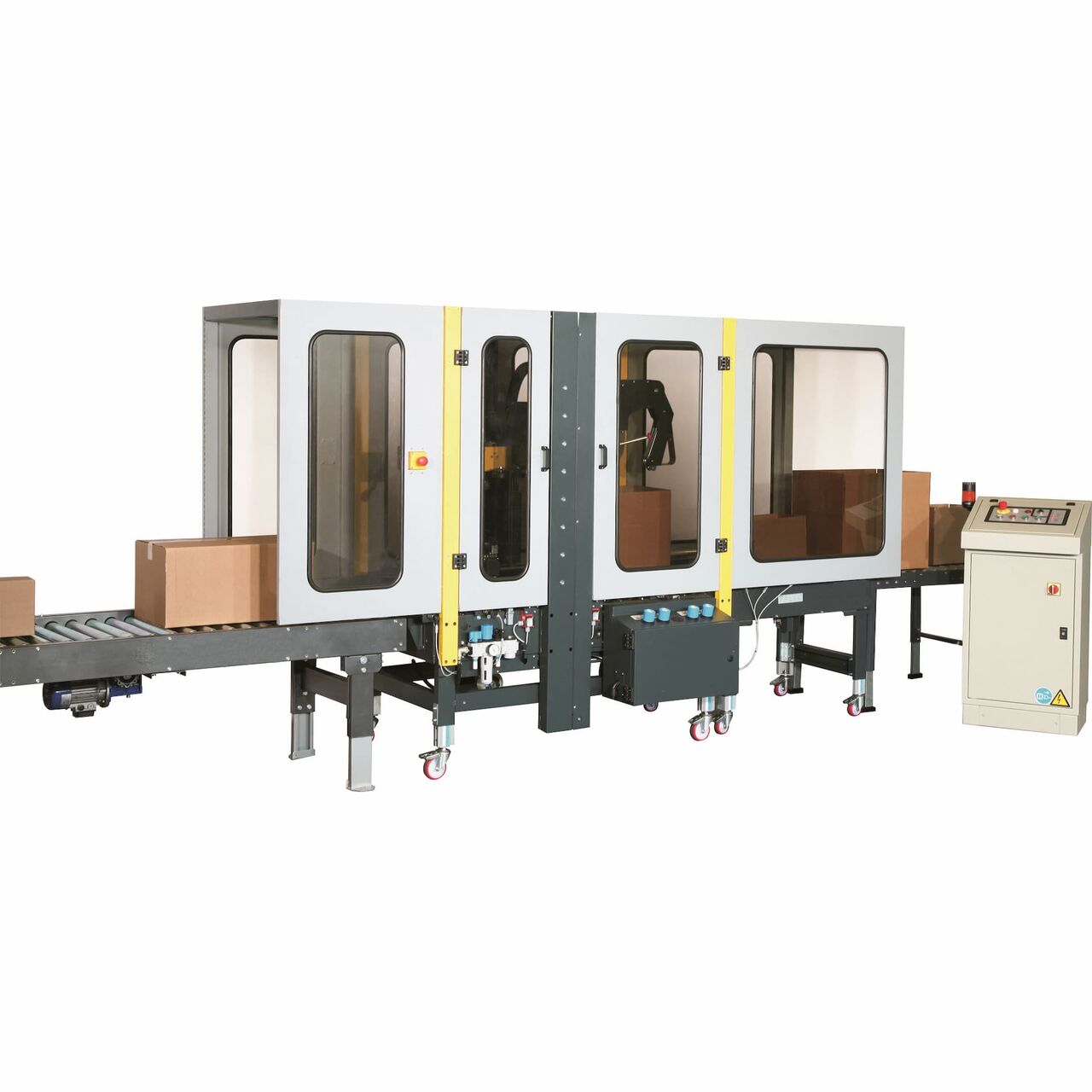

Automatic carton sealerEB SM44
EB44HD is a Range of Automatic Case Sealers with Random Adjustment.
Machines able to adjust themselves on the various box sizes and close the boxes top flaps automatically (without operator).
EB44HD model is an automatic “Random” case sealer: it means that the machine is able to adjust itself on the various box sizes.
The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line. Utilization of EB44HD is intuitive, simple and fast. Installation is extremely fast and thanks to the caster with brake (option), fixed on the four legs, easily movable all over the workplace.
A system, located on the top part of the taping head construction, folds automatically the 4 flaps of the box. By doing this movement, the user can work faster and more efficiently as he has all his hands free to fill boxes or do any other action.
min. 200x160x140, max. 600x500x500w x h x d
50 - 75width (mm)
Top and bottomdruh lepení Technical information
Automatic carton gluer with automatic regulation of the size of the carton. The machine is suitable for cartons with frequently changing sizes. Drive belts are placed on the sides of the cardboard. The machine can be delivered as a separate unit, but also as part of an automatic packaging line.
- Side driven conveyor
- Possibility of operation in automatic mode
- Automatic top and bottom head
- Safety cover
USE
The machine is suitable for medium and higher capacity boxes with the same or frequently changing height. The top lid of the box is closed automatically.
Variation:
- EB SM44HD
- EB SM44/4HD
- EB SM446HD
- Machine drive: electric, pneumatic
- Carton size setting: automatic
- Carton lid closing: automatic
- Size of packaged goods (mm):
- width 150 - 650
- height 100 - 750
- length 200 - 800
- Used tape (mm): 50 - 75
- Capacity (car/hour): 450
- Driven goods conveyor: side
- Connection: 380/400V / pressure. air 6 BAR
- Power consumption: 0.36 kW
