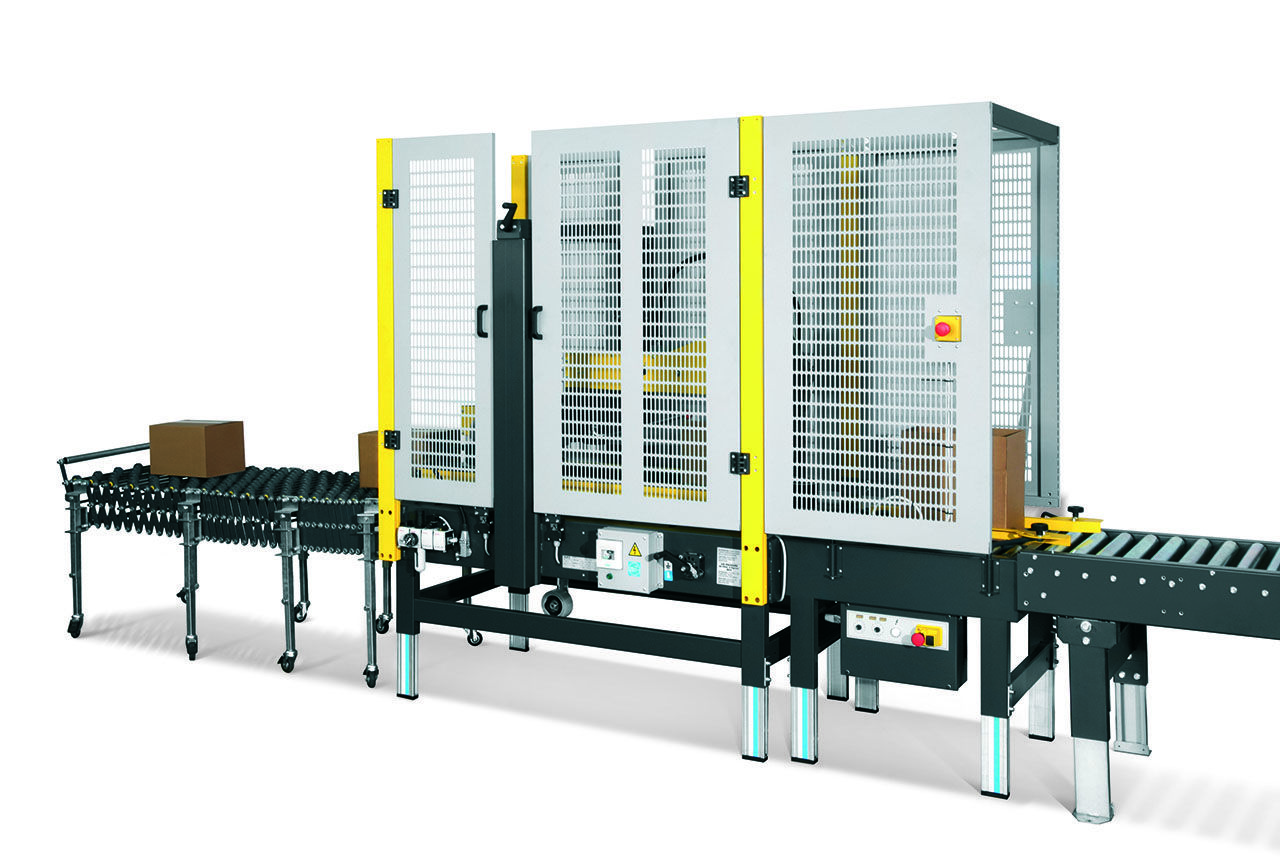

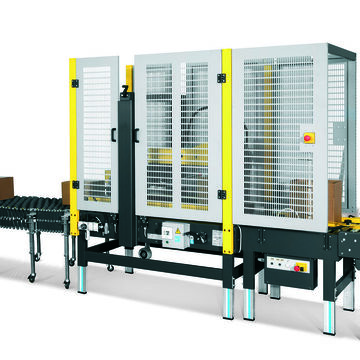

Automatic carton sealerEB SM11
SM11 model is an automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually and for this reason it is used for long runs with same box dimensions. The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line. The SM11 adjustment and use are intuitive, simple and fast.
min. 200x150x100, max. 600x500x600w x h x d
30 - 70width (mm)
Top and bottomdruh lepení Technical information
Automatic carton gluer with manual control of the size of the glued carton. The machine is suitable for cartons with less frequently changing sizes. Drive belts are placed on the sides of the glued cardboard. The machine can be delivered as a separate unit, but also as part of an automatic packaging line.
- Side driven conveyor
- Possibility of operation in automatic mode
- Automatic top and bottom tapping head
- Safety cover
USE
The machine is suitable for medium and higher capacity boxes with the same or infrequently changing height. The top lid of the box is closed automatically.
Variation:
- EB SM11
- EB SM11/4
- EB1116
- Stainless steel design
- Machine drive: electric, pneumatic
- Carton size setting: manual
- Carton lid closing: automatic
- Size of packaged goods (mm):
- width 105 - 650
- height 100 - 700
- length 200 - 900
- Used glue. tape (mm): 30 - 70
- Capacity (car/hour): 1200
- Driven goods conveyor: side
- Connection: 380/400V / pressure. air 6 BAR
- Power consumption: 0.26 kW
