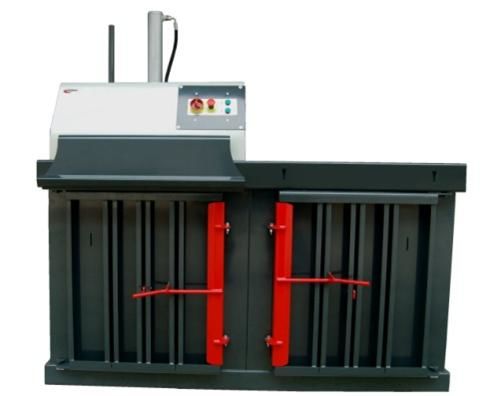

Hydraulic bale pressEKOPACK 50.2
Chamber category bale press is designed with stable construction a fixed pressing chamber on which it is stored a sliding-over pressing head. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Press chamber is filled from the top after pressing head is moved to opposite position. The front door allows easy removal of the bale from chamber.
5lisovací síla (t)
100hmotnost paketu (kg)
700x500x700velikost paketu (mm) Technical information
Hydraulic bale press force with 5 tons pressing force and capacity to produce 1/2 pallet (EUR) size bale. Pressure is realized by hydraulic cylinder with adjustable press force, which ensures long-term reliability in achieving high pressure. Pressing chamber is filled from the top after pressing head is moved to opposite position. Front door allows easy removal of the bale from the pressing chamber. Design of the chamber allows lashing a bale in 3 places by PE strap or wire. Bale press is designed to have multiple pressing chambers within one unit with only one the pressing head (increasing production capacity and waste sorting with minimal purchase costs).
Application
Machine is suitable for small and medium size companies and for customers such as supermarkets, junk centres, stocks, factories etc.
| Maximum pressing force | 5 t ± 5 % |
| Press dimensions (LxWxH) (mm) | 2060x950x1905 |
| Bale dimensions (LxWxH) (mm) | 700x500x(300–700) |
| Bale weight (kg) | maximum 100 |
| Type of drive | hydraulic |
| Surface pressure (kPa) | 121 |
| Power input 1x230V/50Hz (kVA) | 1,1 |
| Number of pressing chambers | 2 |
| Number of binding slots | 3 |
| Pressing cycle time (s) | 25 |
| Electric protection | IP 54 |
| Press weight (kg) | 442 |
ACCESSORIES

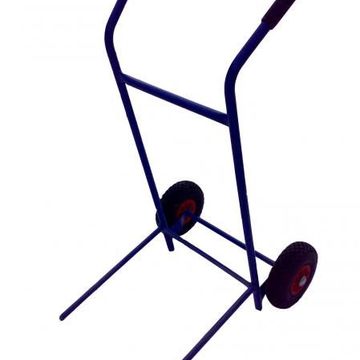

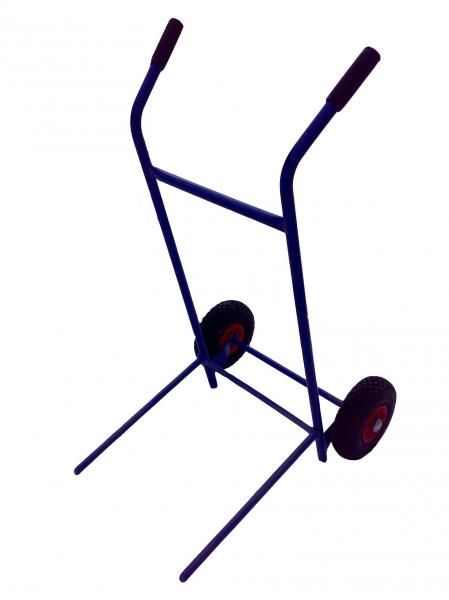

- Hand truck for bales
- Additional chamber EKOPACK 50

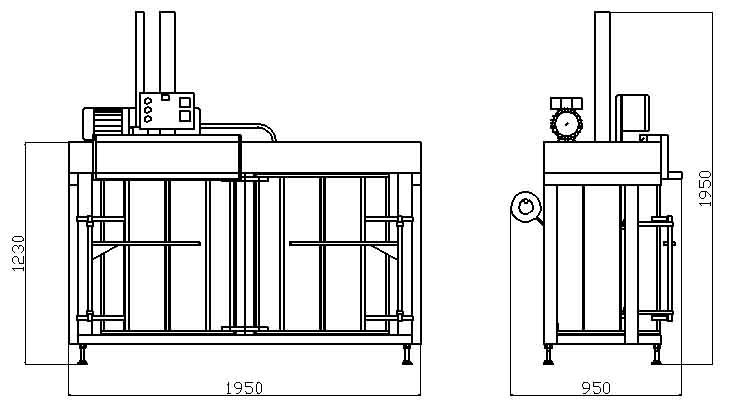

INSTALLATION LAYOUT
