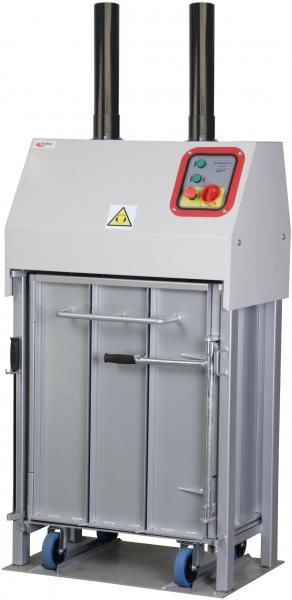

Electromechanical bale pressEkopack 40
Bale press EKOPACK meets the most demanding requirements of our customers with an emphasis on durability and reliability. Using multiple containers or continuous processing of various waste materials, which can effectively sorted. By sorting waste you or your company contribute to the environment protection, saves storage space, time and money. Operation all bale pressers Ekopack is environmentally friendly and very simple.
4lisovací síla (t)
60hmotnost paketu (kg)
600x400x700velikost paketu (mm) Technical information
Electro-mechanical bale press with pressing force of 4tons. Bale press is composed from two components:
1. Bale press with mechanical pressing mechanism with electronic regulation of maximal pressing force, which ensure long-time reliability within reaching high pressure.

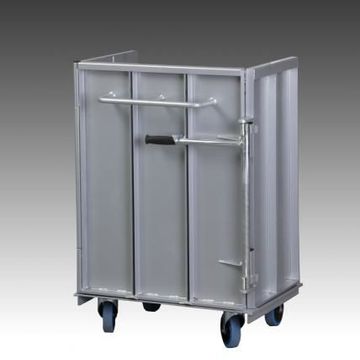

2. Ex-changeable mobile container for easy manipulation with waste before/after pressing.
Application
This bale press is suitable for small size companies and for customers with demand for easy use, small dimensions, low purchase price and big force.
| Maximum press force | 4 t ± 5 % |
| Press dimensions (LxWxH) (mm) | 820x570x1820 |
| Bale dimensions (LxWxH) (mm) | 600x400x(300–700) |
| Bale weight (kg) | maximum 40-60 |
| Type of drive | electro-mechanical |
| Surface pressure (kPa) | maximum 166 |
| Power input 3x400V/50Hz (kVA) | 1,1 |
| Power input 230V/50Hz (kVA) | 1,7 |
| Number of binding places | 2 |
| Electric protection | IP 54 |
| Pressing speed (m/min) | 3 |
| Press weight (kg) | 265 (included container) |
ACCESSORIES
- Mobile container EKOPACK 40, EKOSACK 40
- Version with 230V power supply
- Waste bag 1000x1200mm/100microns

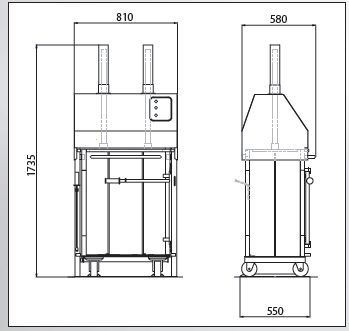

INSTALLATION LAYOUT
